Description

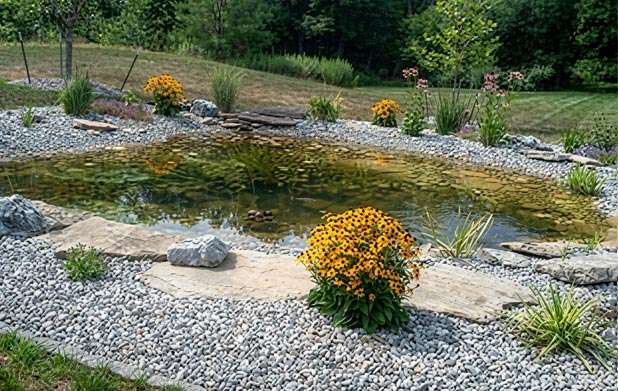

A nutrient enriched pond greater than 3/4 acres in size needs a larger filter. The Titan Country Pond Filter may require excavation work to be more cost effective and have long lasting structural stability. I often get asked how big and how deep should a Titan Filter be made. On the average it takes 200 square feet of filter media per surface acre of pond. Depth only needs to be about 6 inches. Dig down 3-4 inches and use the removed soil to build up the filter frame. Keep in mind that you are building a highly effective photo bioreactor that needs to be shallow enough for sunlight exposure, biofilm development and remain operational all year if needed. This picture shows a filter that is approximately 30ft in diameter.
Key points for consideration:
- Bigger is better when constructing the filter. More media (biofilm)surface area encourages more nutrient absorption.
- Constructing and leveling a large filter frame with compacted soil is much easier than assembling a frame from wood, concrete blocks or aluminum rails.
- More than one spillway may be needed to manage water outflow especially during winter.
- Liner size (up to 1 acre) can be provided. Underlayment material is not required in most installations.
- We have experience creating large filters, give us a call if you have questions.
We can provide you with a material and supply estimate once you have determined the filter size.
